SPB (Plan 53B)

Request product

SPB (Plan 53B)

SPB (Plan 53B)
Request product

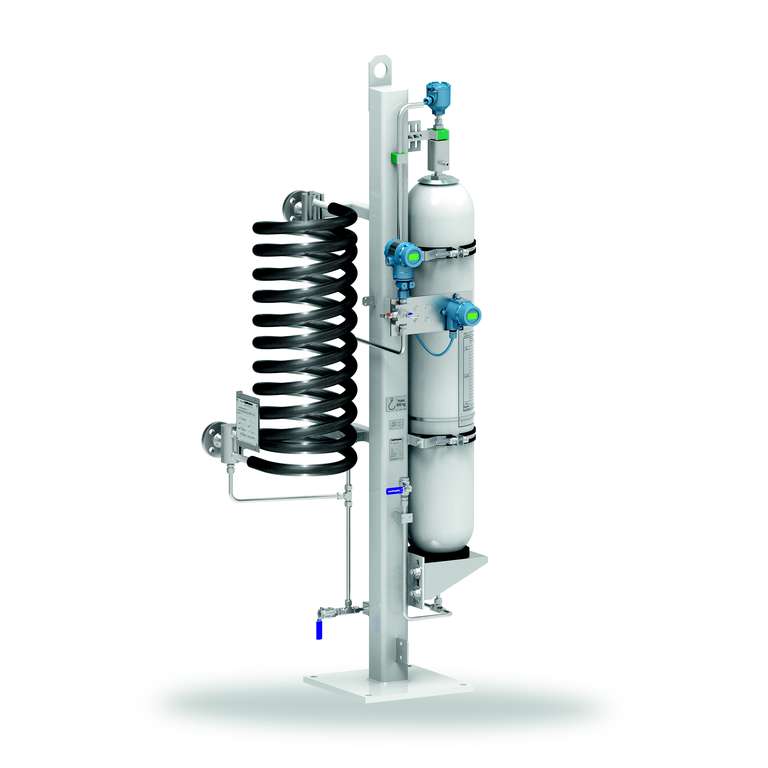

SPB6002A4 with air cooler

A From mechanical seal
B To mechanical seal
C Fill
F Drain
H N2 Precharge

SPB (Plan 53B)

Features

Pressurized barrier system (closed circuit) for use in seal systems with high pressures and/or for hazardous/environmentally harmful processes. The SPB (Plan 53B) range is available with a pressure accumulator, cooler (finned tube, water or air cooler with fan) and a wide range of instruments.

Circulation in accordance with API 682 / ISO 21049: Plan 53B

Advantages

  • Pressurization is by means of a pre-loaded bladder accumulator
  • The nitrogen is separated from the barrier medium by membranes in the accumulator: nitrogen cannot get into the barrier medium or process medium
  • Barrier pressure is created without any need for connection to a nitrogen supply
  • Available with finned tube, water or air coolers with fan
  • Modular system: combination with a wide range of system components/instruments possible

Standards and approvals

  • PED 2014/68/EU (Design and production in accordance with EU Pressure Equipment Directive)
  • ASME VIII, Div. 1 (Design, calculation and production)

Functional description

The SPB is designed to perform the following functions of a barrier system:
  • to pressurize the barrier chamber
  • leakage compensation
  • to cool the seal

Pressurization (> process pressure) prevents the process medium from getting into the barrier circuit or the atmosphere. Pressurization is supplied by a pressure accumulator which is pre-loaded with nitrogen. Circulation in the barrier circuit takes place by the thermosiphon principle or by forced circulation, e.g. with a pumping screw.

Notes

A refilling unit has to be provided.


Product variants

Other versions and connections (flanged, threaded, welded) on request.

Similar products

NonFlow Supply System

NonFlow Supply System

With the new NonFlow seal supply system it is possible to supply barrier fluid to double and tandem mechanical seals for a broad range of applications. NonFlow systems are equipped as standard with all the necessary system connections and brackets. The system allows for multiple additional components for remote monitoring such as seal temperature monitoring with PT-100 sensors, pressure measurement and leakage detection by flow monitoring.

Read more

SPO (Plan 53C)

SPO (Plan 53C)

Pressurized barrier system (closed circuit) for use in seal systems with high pressures and/or for hazardous/environmentally harmful processes. The SPO Plan 53C range is available with a pressure booster, cooler (finned tube, water or air cooler with fan) and a wide range of instruments.

Circulation in accordance with API 682 / ISO 21049: Plan 53C

Read more
